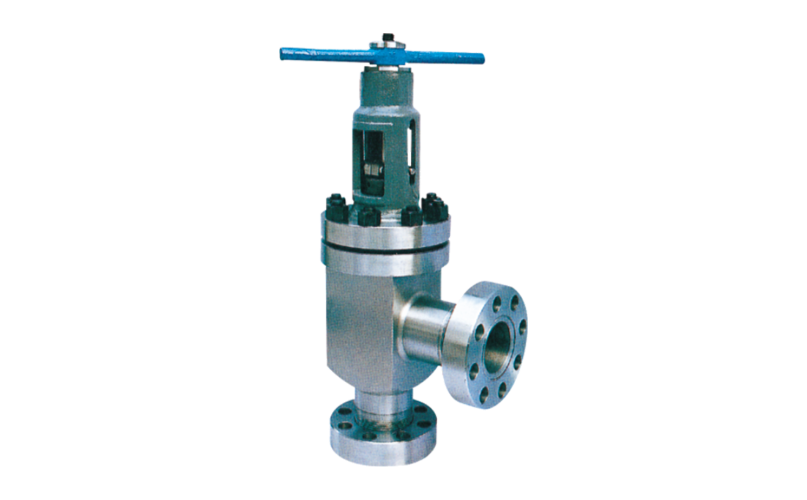

Angle Globe Valve

High pressure angle globe valve is a globe valve with a 90 ° right angle connection between inlet and outlet, designed specifically for high-pressure pipeline systems (working pressure up to 42MPa). The valve body is made of forged steel/stainless steel (such as A105, F316) material, and the internal sealing surface is welded with hard alloy (such as Stellite), which is resistant to erosion and high temperature (≤ 550 ℃). Its angular structure can directly replace pipeline elbows, reduce flow resistance and installation space, and is suitable for opening, closing, and flow control of high-pressure steam, oil, and gas pipelines in petroleum, chemical, and other industries. It meets standards such as API 602 and has high sealing performance (zero leakage) and long-term reliability.

  • Multifunctional and Long Cycle Reliability
  • Installation and maintenance convenience
  • Material and process upgrade
  • High pressure seal strengthening
  • Right angle flow channel and structural optimization
Multifunctional and Long Cycle Reliability
  • Multifunctional and Long Cycle Reliability
    01
    Suitable for water, steam, oil and gas, and particulate media, covering multiple industries such as chemical, power, metallurgy, etc;
  • 02
    The S-shaped flow channel or buffer structure reduces fluid impact and extends the service life of the valve.
Installation and maintenance convenience
  • Installation and maintenance convenience
    01
    Support vertical installation, adapt to high-pressure pipeline layout requirements, and do not require additional support structures;
  • 02
    Compact design takes up little space, especially suitable for limited space scenarios such as chemical and natural gas industries.
Material and process upgrade
  • Material and process upgrade
    01
    The valve body is made of forged steel/stainless steel (such as A105, F316), which has undergone quenching and surface nitriding treatment to enhance corrosion resistance and mechanical strength;
  • 02
    The valve stem is equipped with a lift position display function, which makes the operation more intuitive and reduces the risk of misoperation.
High pressure seal strengthening
  • High pressure seal strengthening
    01
    The sealing surface is welded with cobalt based hard alloy (such as Stellite), which is resistant to high temperature (≤ 550 ℃), erosion, and suitable for high pressure conditions of 42MPa;
  • 02
    The dual sealing structure combined with precision machining achieves zero leakage, especially suitable for safety control of toxic and flammable media.
Right angle flow channel and structural optimization
  • Right angle flow channel and structural optimization
    01
    The import and export are connected at a 90 ° right angle, which can directly replace pipeline elbows, reduce installation space and the number of accessories, and simplify pipeline layout;
  • 02
    Short straight channel design reduces fluid resistance and energy consumption, and improves system operating efficiency.
Main Component Materials

Part Name

Material

Valve body and valve base

high-quality carbon steel

A105、35

Valve stem, valve disc, valve seat

chromium steel

2Cr13

filler

Polytetrafluoroethylene

F-4

stem nut

Casting aluminium brass

ZCuZn25A16Fe3Mn3

handle

ductile cast iron

QT400-18

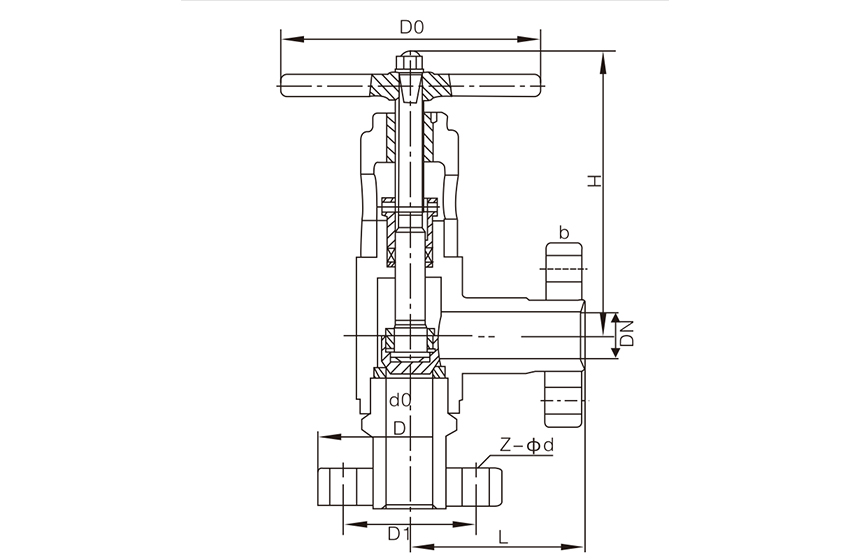

Performance Specifications & Dimensions
  • Nominal Pressure PN
    16.0/32.0
  • Shell F
    Px1.5
  • Sealing Pressure
    Px1.1
  • Medium
    Nitrogen hydrogen mixture, ammonia, liquid ammonia, copper ammonium solution, alkaline solution, etc
  • Temperature (℃)
    ≤200℃

Nominal

Diameter

DN(mm)

PN16.0MPa

L

d0

D

D1

b

Z-Φd

H

D0

10

90

10

95

60

20

3-18

202

200

15

105

14

95

60

20

3-18

202

200

20

120

20

105

68

20

3-18

232

250

25

135

26

115

80

22

4-18

235

250

40

165

39

165

115

26

6-26

255

350

50

190

48

165

115

32

6-26

300

450

65

215

55

200

145

40

6-29

435

560

80

260

70

225

170

50

6-33

478

560

PN32.0MPa

10

90

10

95

60

20

3-18

202

200

15

105

15

105

68

20

3-18

202

200

20

120

20

115

80

22

4-18

232

250

25

135

27

135

95

25

4-22

235

250

40

165

40

165

115

32

6-26

255

350

50

190

48

200

145

40

6-29

300

450

65

215

55

225

170

50

6-33

435

560

80

260

70

260

195

60

6-36

478

560

Note: The above data is for reference only. For details, please consult the company's sales department.
