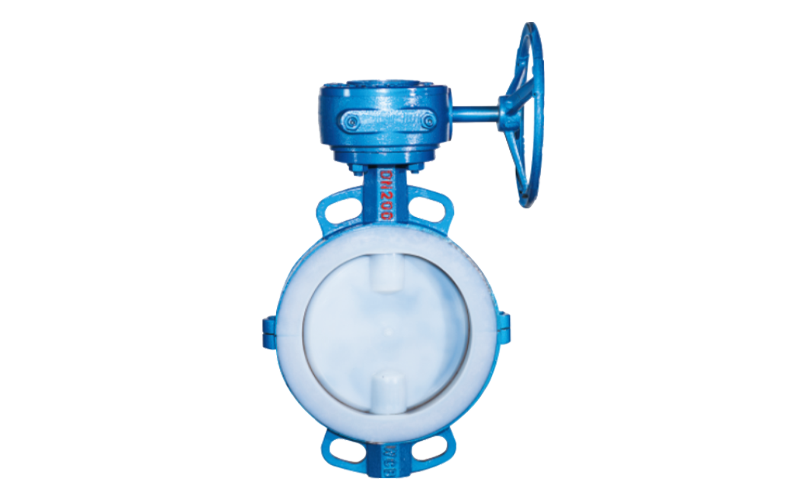

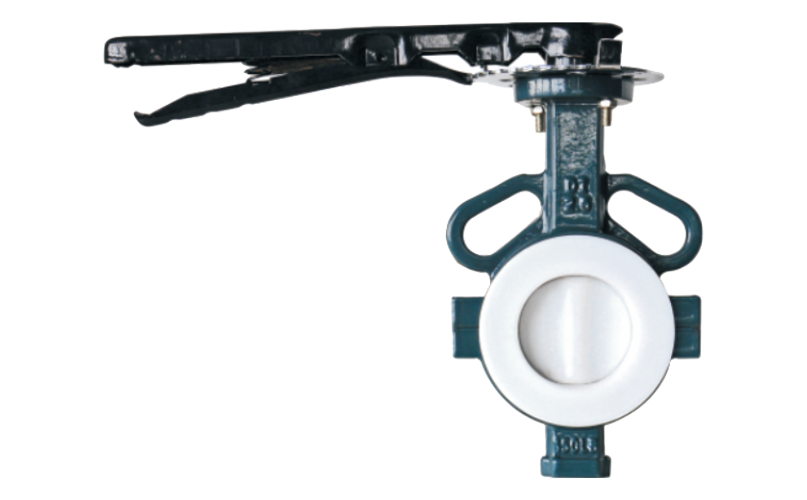

Clamp Type Fluorine Lined Butterfly Valve

A-type clamp butterfly valve is a butterfly valve installed through clamp flange connection, adopting a medium line design, and the valve plate can rotate 90 ° for rapid opening and closing. Its structure is compact and lightweight, suitable for low-pressure and low-temperature ordinary media (such as water and air), relying on rubber or soft seals to achieve basic cutoff function. It has the characteristics of economic practicality and easy maintenance, but cannot meet the requirements of high-pressure, high-temperature or highly corrosive working conditions.

  • Multi scenario applicability
  • Flexible operation and quick response
  • Low flow resistance and high regulation accuracy
  • Compact, lightweight, and easy to maintain
  • Bidirectional sealing and zero leakage
  • Excellent corrosion resistance
Multi scenario applicability
  • Multi scenario applicability
    01
    Can adapt to different lining materials (such as nitrile rubber, ethylene propylene rubber) to meet special medium requirements;
  • 02
    Supports vertical, horizontal and other multi station installation, compatible with manual, pneumatic or electric control methods.
Flexible operation and quick response
  • Flexible operation and quick response
    01

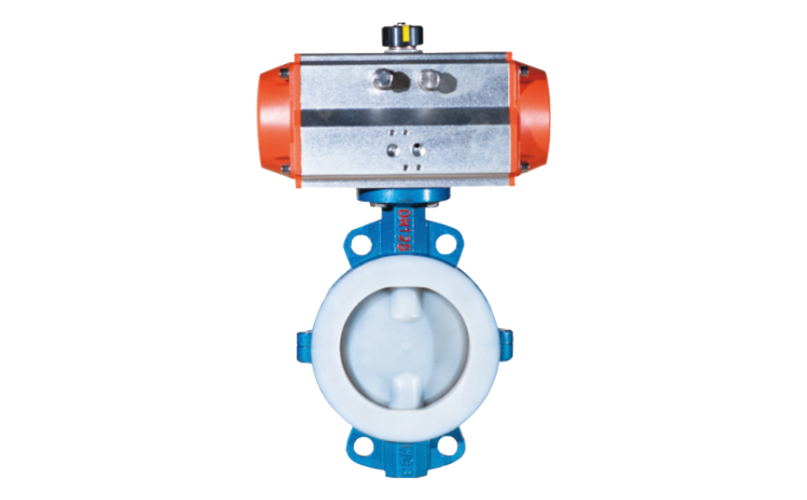

    Driven by lightweight wheels or pneumatic actuators, opening and closing only require 90 ° rotation (action time ≤ 5 seconds), supporting frequent switch operations.
Low flow resistance and high regulation accuracy
  • Low flow resistance and high regulation accuracy
    01
    The flat butterfly plate structure reduces medium flow resistance and system pressure loss, especially suitable for high flow gas or liquid transportation;
  • 02
    The flow characteristics are close to a straight line, and the medium flow can be accurately controlled by 90 ° rotation, with better regulation performance than ordinary gate valves or globe valves.
Compact, lightweight, and easy to maintain
  • Compact, lightweight, and easy to maintain
    01
    The clamp type connection design has a small volume and light weight, suitable for narrow pipeline spaces, and does not require additional flanges during installation, saving costs;
  • 02
    The seal can be replaced independently, and there is no need to disassemble the valve body during maintenance, reducing downtime.
Bidirectional sealing and zero leakage
  • Bidirectional sealing and zero leakage
    01
    Adopting a bidirectional soft sealing structure, the valve seat and butterfly plate are sealed with fluoroplastic, achieving complete medium isolation when closed, and the leakage rate meets national standards;
  • 02
    Special elastic compensation design (such as a four stage sealing structure) can maintain stable sealing performance even under working conditions of -50 ℃~+200 ℃.
Excellent corrosion resistance
  • Excellent corrosion resistance
    01
    The valve body, butterfly plate and other overcurrent components are lined with fluoroplastics (such as polytetrafluoroethylene), which can resist corrosive media such as strong acids, alkalis, salt solutions and organic solvents, and are suitable for high corrosion scenarios in chemical and pharmaceutical industries.
Main Component Materials

Part Name

gray cast iron

carbon steel

stainless steel

Ultra low carbon stainless steel

Z

C

P

R

PL

RL

Upper and lower valve bodies

HT250

WCB

CF8

CF8M

CF3

CF3M

butterfly valve disc

WCB

35 (forging)

CF8

CF8M

CF3

CF3M

Butterfly board shaft

1Cr13

2Cr13

1Cr18Ni9Ti

1Cr18Ni12Mo2Ti

00Cr18Ni10

00Cr18Ni14Mo2

Lining layer/valve seat

PTFE (F4) PCTFE (F3) FEP (F46) PFA (soluble F4) PO (polyolefin)

O-ring

FPM (Fluororubber)

Elastic strip (pad)

SiR (silicone rubber)

Adjust the positioning seat

OCr18Nig

OCr18Nig

1Cr18Nig9

1Cr18Ni12Mo2Ti

00Cr18Ni10

00Cr18Ni14Mo2

bolt

35

35

1Cr17Ni2

1Cr17Ni2

1Cr18Ni9Ti

1Cr18Ni9Ti

nut

45

45

OCr18Ni9

OCr18Ni9

OCr18Ni9

OCr18Ni9

Handle worm gear box

Z1101 (cast iron aluminum alloy)

Performance Specifications & Dimensions
  • Nominal pressure PN
    0.6/1.0/1.6/2.5/4.0/6.4
  • Shell F
    P x 1.5
  • Sealing Pressure
    P x 1.1
  • Medium
    Freshwater, sewage, seawater, air, steam, food, medicine, various oils, acids, alkalis, etc
  • Temperature (℃)
    -50℃~180℃

Nominal Diameter

Standard value

Reference value

DN
(mm)

NPS
(inch)

L

D1

D2

Z-Φd

D0

H

WT(Kg)

PN1.0MPa

40

1 1/2

33

110

85

4-18

160

140

3

50

2

43

125

100

4-18

200

145

4

65

2 1/2

46

145

120

4-18

250

155

6

80

3

46

160

135

4/8-18

250

165

80

100

4

52

180

155

8-18

250

180

12

125

5

56

210

185

8-18

300

203

18

150

6

56

240

210

8-23

300

225

28

200

8

60

295

265

8-23

200*

275

56

250

10

68

350

320

12-23

200*

315

72

300

12

78

400

368

12-23

240*

348

88

350

14

78

460

428

16-23

240*

415

120

400

16

102

515

482

16-25

280*

460

145

450

18

114

565

532

20-25

280*

500

165

500

20

127

620

585

20-25

320*

530

195

600

24

154

725

685

20-30

320*

610

268

700

28

165

840

800

20-30

360*

675

320

800

32

190

950

905

24-34

360*

805

395

900

36

203

1050

1005

28-34

380*

995

450

1000

40

216

1160

1115

28-34

400*

1170

680

1200

48

254

1380

1325

32-41

400*

1295

825

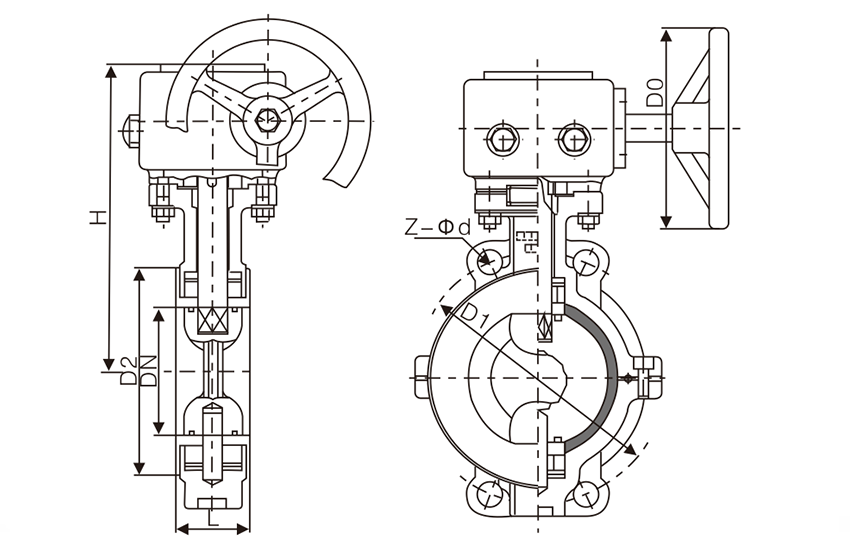

*The flange dimensions D, D1, D2, Z - Φ d, f, and b are the standard flange dimensions connected to the butterfly valve, and the dimension codes in the diagram are only a part of them.

*When the flange size is PN1.0MPa and the number of screw holes is JB78, Z=4. For other standards, Z=8. Note: For detailed data, please consult the company's sales department.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
