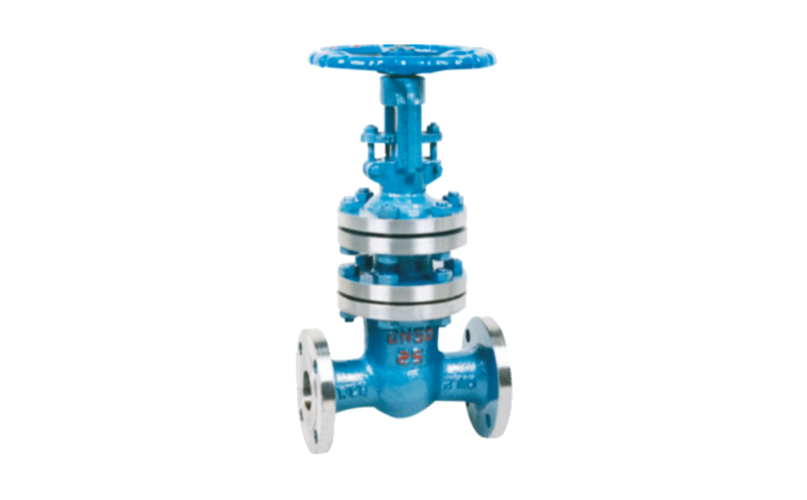

International Bellows Gate Valve

Definition: A gate valve designed in accordance with international standards such as API, ANSI, DIN, using bellows as the stem sealing element, suitable for industrial pipeline systems with high sealing requirements, and capable of fully opening/closing medium flow.


Core features:

Bellows sealing: Stainless steel or Inconel bellows replace traditional packing to achieve zero leakage of valve stem, especially suitable for toxic and flammable media;

Double protection design: Some models combine corrugated pipes and packing boxes to form a double seal, improving safety and durability;

Full bore flow channel: The valve disc moves in a straight line along the centerline of the fluid, reducing flow resistance and suitable for high-purity or easily vaporized media;

International standard adaptation: The valve body material (carbon steel, stainless steel, etc.) and process comply with regulations from multiple countries, and are suitable for complex working conditions such as high pressure and high temperature.


Typical applications: Pipelines that require strict leak prevention in the petrochemical, pharmaceutical, power system, and nuclear industries, such as the transportation of liquefied natural gas and corrosive chemicals.


Advantages: superior sealing performance compared to traditional gate valves, low maintenance costs, support for manual/gear drive, meeting international environmental and safety standards.

  • Modular maintenance design
  • Widely applicable scenarios
  • Easy to operate and lightweight
  • Corrosion resistance and high durability
  • Full diameter flow channel design
  • International standard adaptability
  • Double sealed protection
  • Bellows sealing structure
Modular maintenance design
  • Modular maintenance design
    01
    The sealing components support quick replacement, and some models can be maintained online, reducing downtime and repair costs.
Widely applicable scenarios
  • Widely applicable scenarios
    01
    Covering harsh environments such as petrochemicals, pharmaceuticals, electricity, and nuclear industries, it is particularly suitable for safe transportation of media such as liquefied natural gas and corrosive chemicals.
Easy to operate and lightweight
  • Easy to operate and lightweight
    01
    Supports handwheel, gear or electric drive, with low operating torque; Compact and lightweight structure, easy to install and maintain.
Corrosion resistance and high durability
  • Corrosion resistance and high durability
    01
    The sealing surface is welded with cobalt based hard alloy or made of materials such as PTFE and polystyrene. The valve stem is treated with nitriding to enhance wear resistance and corrosion resistance, and extend its service life.
Full diameter flow channel design
  • Full diameter flow channel design
    01
    The valve disc moves in a straight line along the centerline of the fluid, with a full diameter flow channel and low resistance, avoiding medium accumulation and suitable for high-purity or easily vaporized fluids.
International standard adaptability
  • International standard adaptability
    01
    Following international standards such as API, ANSI, DIN, etc., the valve body material (such as carbon steel, stainless steel) and process can be adapted to high pressure, high temperature, and corrosive working conditions.
Double sealed protection
  • Double sealed protection
    01
    Some models combine corrugated pipes and packing boxes to form a dual sealing barrier, further enhancing sealing reliability and safety.
Bellows sealing structure
  • Bellows sealing structure
    01
    Using stainless steel or Inconel bellows instead of traditional packing to achieve zero leakage of the valve stem, especially suitable for high sealing requirements of toxic, flammable, and valuable media.
Main Component Materials

Part Name

Material

valve body

WCB WC1、WC6、WC9、C5CF8、CF8M、CF3、CF3M

valve plate

25、1Cr13、2Cr131Cr18Ni9Ti、0Cr18Ni12Mo2Ti20Cr1Mo1V、25Cr2MoV

valve stem

25、1Cr13、2Cr131Cr18Ni9Ti、0Cr18Ni12Mo2Ti20Cr1Mo1V、25Cr2MoV

Bellows component

1Cr18Ni9Ti、304、316、304L、316L

support

WCB、WC1、WC6、WC9、C5CF8、CF8M、CF3、CF3M、

shim

Flexible graphite+stainless steel PTFE

valve cover

NCB WC1、WC6、WC9、C5CF8、CF8M、CF3、CF3M

hex nut

OCr18Ni9Ti、0Cr18Ni12Mo2Ti 35CrMoV、25Cr2MoV

double-ended bolt

0Cr18Ni9Ti、0Cr18Ni12Mo2Ti 35CrMoV、25Cr2MoV

filler

flexible graphite

gland

NCB WC1、WC6、WC9、C5CF8、CF8M、CF3、CF3M

stem nut

copper alloy

handwheel

WCB QT400-18

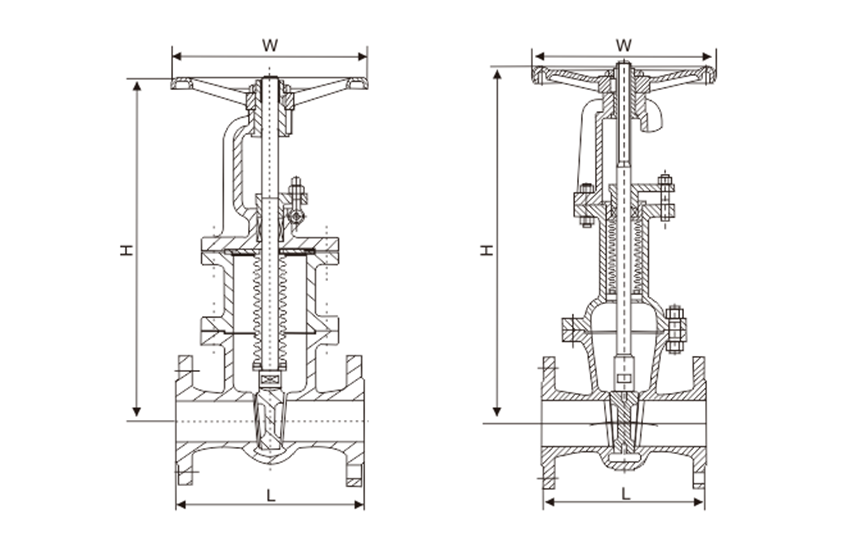

Performance Specifications & Dimensions
  • Nominal Pressure PN
    1.6/2.5/4.0/6.4
  • Shell F
    Px1.5
  • Sealing Pressure
    Px1.1
  • Medium
    Water, Steam, Oil
  • Temperature (℃)
    ≤350℃

Nominal

Diameter

DN(mm)

PN1.6MPa

L

H

W

15

108

200

120

20

117

210

140

25

127

250

140

32

140

260

180

40

165

290

200

50

175

370

220

65

190

398

260

80

203

440

280

100

229

490

300

125

254

530

340

150

267

580

400

200

292

670

450

250

330

760

450

300

356

850

500

350

381

950

500

Note: The pressure range is 1.6MPa~6.4MPa. The above data is for reference only. Please consult the company's sales department for details.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
