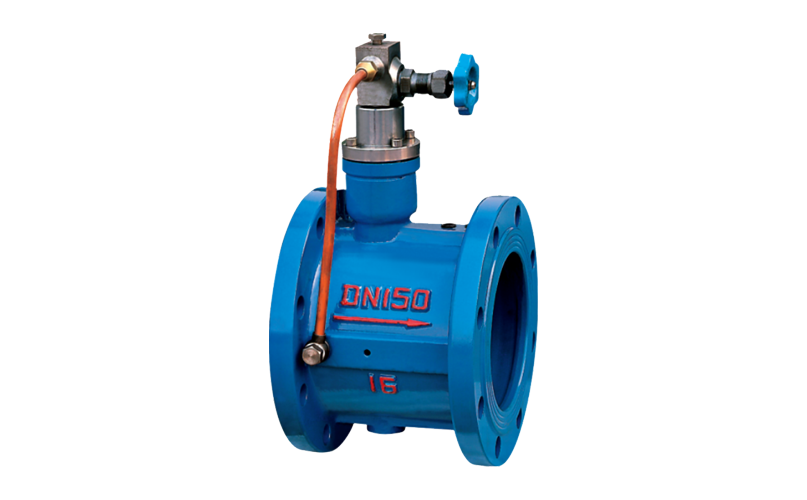

Micro Resistance Slow Closing Butterfly Check Valve

Essence: A valve that combines low flow resistance and slow closing check function of butterfly valve. It achieves rapid flow interception and slow closing energy dissipation through butterfly plate rotation opening and closing and hydraulic/mechanical damping regulation, and has energy-saving, anti backflow, and water hammer protection functions.


Core features:

Ultra low flow resistance: butterfly plate thin-walled streamline design, with a flow area of over 90% when fully open, extremely low pressure drop loss, suitable for high flow systems;

Two stage slow closure: When closing, quickly cut off the main water flow first, and then slowly close the remaining opening through hydraulic dampers or spring devices to reduce water hammer impact by more than 80%;

Reliable sealing: The edge of the butterfly plate is covered with rubber or polyurethane, which is flexibly adhered to the valve body, with zero leakage and wear resistance;

Compact and durable: The structure is lightweight, and the valve body is mostly made of ductile iron or stainless steel, which is resistant to high pressure corrosion and has a lifespan of over 10 years.

Typical applications: Water supply and drainage pump stations, industrial circulating water systems, air conditioning pipelines, and other scenarios that require low energy consumption, backflow prevention, and limited space.

  • Noise reduction and smooth operation
  • Compact structure and easy installation
  • Reliable and durable sealing
  • Slow closure energy dissipation and water hammer protection
  • Energy saving and low flow resistance design
Noise reduction and smooth operation
  • Noise reduction and smooth operation
    01
    During the slow closing process, flexible contact reduces valve disc impact noise, and the operating sound level is reduced by more than 60% compared to traditional valves;
  • 02
    The damping device synchronously suppresses pipeline vibration to prevent resonance from affecting system stability.
Compact structure and easy installation
  • Compact structure and easy installation
    01
    The volume is only 1/4-1/8 of traditional flange check valves, with light weight and small space occupation, suitable for narrow pipeline layouts;
  • 02
    Supports horizontal, vertical, or inclined installation, suitable for various pipe diameter requirements of DN40-DN2000.
Reliable and durable sealing
  • Reliable and durable sealing
    01
    The edge of the butterfly plate is covered with rubber or polyurethane, which flexibly adheres to the valve body to achieve zero leakage, corrosion resistance, wear resistance, and a service life of over 10 years;
  • 02
    The core components (valve shaft, valve body) are made of stainless steel or ductile iron material, which can withstand high pressure and corrosive media.
Slow closure energy dissipation and water hammer protection
  • Slow closure energy dissipation and water hammer protection
    01
    The closing process is divided into two stages: rapid flow interception and gradual closure energy dissipation. The remaining opening closure is delayed by hydraulic dampers or spring devices, weakening more than 80% of the water hammer impact pressure;
  • 02
    Adjustable damping devices (such as needle valves) precisely control the closing speed to avoid equipment damage caused by sudden increases in pipeline pressure.
Energy saving and low flow resistance design
  • Energy saving and low flow resistance design
    01
    Adopting a butterfly plate thin-walled streamlined structure, the flow area reaches over 90% when fully opened, and the fluid resistance is only 1/5 of that of traditional check valves, significantly reducing pumping energy consumption;
  • 02
    The full bore channel design reduces pressure drop losses, adapts to high flow systems, and improves energy efficiency.
Main Component Materials

Part Name

valve body

valve disc

Valve stem, oil cylinder, piston

spring

valve seat

material

Cast iron, cast steel

carbon steel

stainless steel

stainless steel

nbr

Performance Specifications & Dimensions
  • Nominal Pressure PN
    1.0/1.6/2.5
  • Shell F
    Px1.5
  • Sealing Pressure
    Px1.1
  • Medium
    Clear water, sewage, seawater
  • Temperature (℃)
    0~80℃ (If necessary, up to 200 ℃)

Nominal

Diameter

DN(mm)

PN1.0/1.6/2.5MPa

L

H

H1

40

140

200

88

50

150

215

98

65

170

225

108

80

180

235

118

100

190

280

130

125

200

290

148

150

210

310

172

200

230

350

210

250

250

415

240

300

270

450

264

350

290

480

297

400

310

550

324

450

330

585

351

500

350

640

379

600

390

720

434

700

430

780

491

800

470

840

549

900

510

990

600

1000

550

1050

655

1200

630

1210

770

Note: The pressure range is 1.0MPa~2.5MPa. The above data is for reference only. Please consult the company's sales department for details.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
