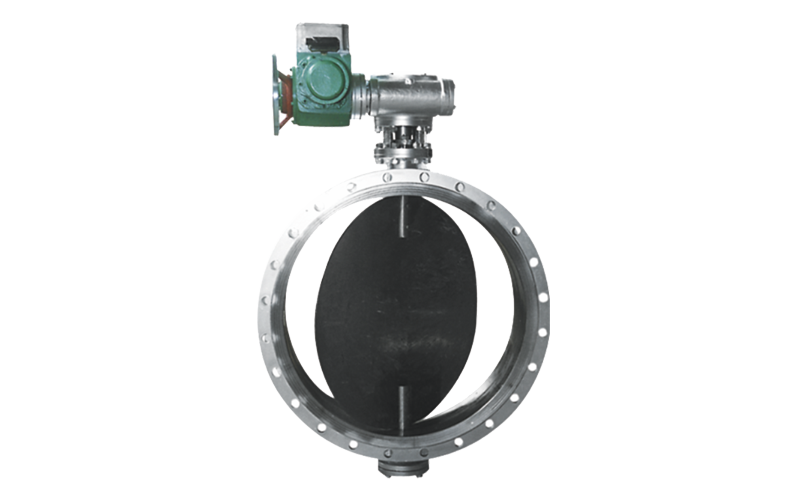

Ventilation Butterfly Valve

Ventilation butterfly valve is a non sealed butterfly valve that uses a disc-shaped valve plate to rotate around the valve axis to achieve opening, closing, or regulating functions. It is mainly used for flow control of gas media (including dust, smoke, etc.) in ventilation ducts. Its design features include:

The structure is simple and lightweight, and the valve body is mostly welded with short structural steel plates or high-strength cast iron, occupying small space and easy to install;

Triple eccentric structure optimizes sealing performance, allowing for minimal leakage under low pressure to avoid particle blockage of the valve plate;

High temperature and corrosion resistance, suitable for temperatures ≤ 300 ℃, suitable for dusty or high-temperature gas working conditions in industries such as building materials, power, chemical, etc;

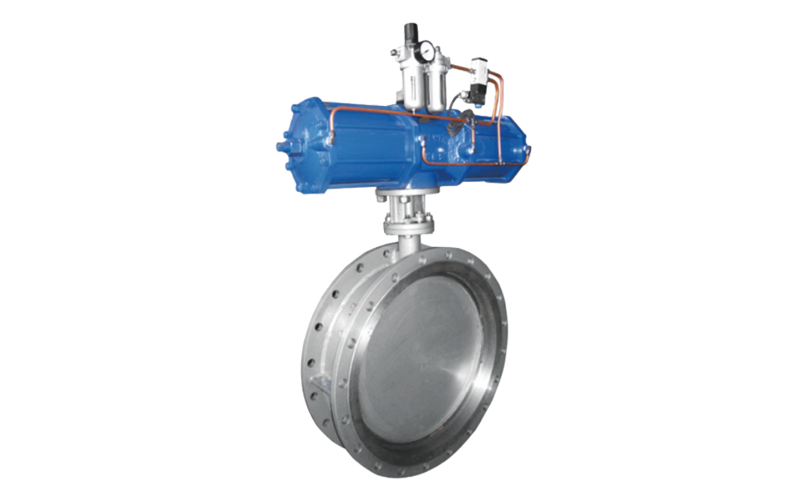

Supports manual, electric or pneumatic drive, with low operating torque and low flow resistance, and can quickly adjust the flow rate of the medium in the pipeline.

  • Economical and practical
  • Low maintenance cost
  • Diversified driving methods
  • High temperature resistance and corrosion resistance
  • Non sealed design, suitable for dusty gases
  • Efficient flow regulation capability
  • Lightweight structure, easy to install
Economical and practical
  • Economical and practical
    01
    Compared to hard sealed butterfly valves or gate valves, it has lower manufacturing costs and higher cost-effectiveness, making it suitable for ventilation systems with large pipe diameters and low pressures (≤ PN6).
Low maintenance cost
  • Low maintenance cost
    01
    Simple structure, no complex sealing structure, low failure rate, daily maintenance only requires cleaning valve plate dust or lubricating rotating parts;
  • 02
    The valve plate and valve shaft can be disassembled and replaced without the need to dismantle the valve as a whole.
Diversified driving methods
  • Diversified driving methods
    01
    Supports manual, electric, pneumatic or worm gear drive, with small operating torque and flexible opening and closing, especially suitable for high-altitude or remote control scenarios.
High temperature resistance and corrosion resistance
  • High temperature resistance and corrosion resistance
    01
    The valve body material can be selected from carbon steel, stainless steel or heat-resistant alloy, with a temperature tolerance of over 300 ℃, suitable for high temperature flue gas environment;
  • 02
    The surface can be coated with anti-corrosion coating (such as epoxy resin) to extend the service life under humid or corrosive gas conditions.
Non sealed design, suitable for dusty gases
  • Non sealed design, suitable for dusty gases
    01
    Mainly used for regulating rather than completely cutting off the medium, allowing for trace leakage and avoiding particle blockage of valve plates, suitable for working conditions containing dust and flue gas (such as dust removal systems and boiler flues);
  • 02
    Leave a gap between the valve plate and the valve body to reduce the risk of wear.
Efficient flow regulation capability
  • Efficient flow regulation capability
    01
    The valve plate is disc-shaped or louvered, and can flexibly control the medium flow rate through 90 ° rotation, with a wide adjustment range (0-90 °), meeting the dynamic requirements of the ventilation system;
  • 02
    Low flow resistance design, small pressure drop when the medium passes through, reducing system energy consumption.
Lightweight structure, easy to install
  • Lightweight structure, easy to install
    01
    Adopting a thin valve body design, the overall weight is light and the space occupation is small, especially suitable for scenarios with strict space requirements such as ventilation ducts;
  • 02
    Flange or clamp type connections can be quickly connected to pipelines without the need for complex installation tools.
Main Component Materials

Part Name

material

valve body

Special materials such as cast steel, stainless steel, chromium nickel molybdenum titanium steel,

chromium molybdenum titanium steel, etc

butterfly valve disc

Special materials such as cast steel, stainless steel, chromium nickel molybdenum titanium steel,

chromium molybdenum titanium steel, etc

sealing ring

Same as valve body

valve stem

Carbon steel, 2Cr13, stainless steel, chromium nickel molybdenum titanium steel

filler

Fluoroplastics, flexible graphite

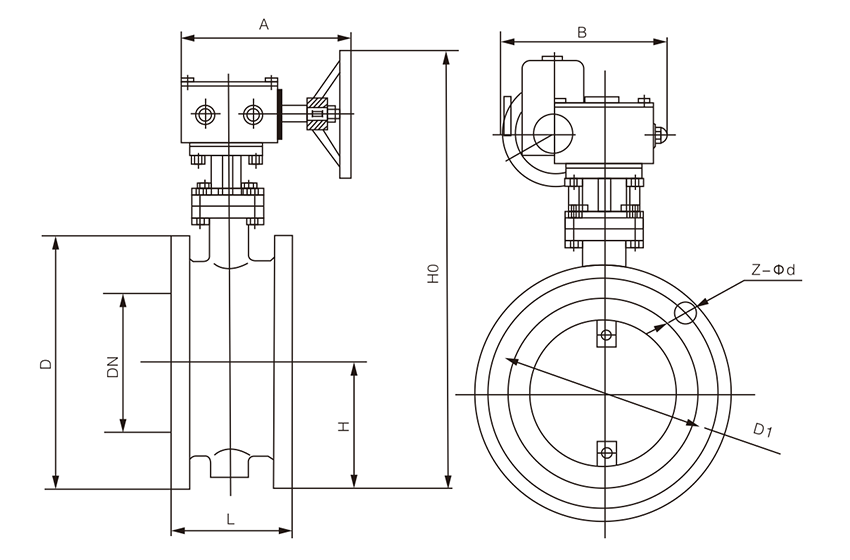

Performance Specifications & Dimensions
  • Shell F
    P x 1.5
  • Sealing Pressure
    P x 1.1
  • Medium
    Gas, dusty gas, flue gas, etc
  • Temperature (℃)
    -30℃~-350℃

Nominal diameter

DN (mm)

Structural lengt

 (standard value)

External dimensions

(reference value)

Connection size (standard value)
PNO.05MPa and PNO.25MPaPNO.6MPa
mminchLHHO A B DD1Z-ΦdDD1Z-Φd
502108704182502251401104-141401104-14
652 1/2"112804382502251601304-141601304-14
803114954662502251901504-181901504-18
10041271054862502252101704-182101704-18
12551401205163252452402008-182402008-18
15061401325413252452652258-182652258-18
20081521607793252453202808-183202808-18
2501016518783636331337533512-1837533512-18
3001217822090136331344039512-2244039512-22
3501419024595436331349044512-1249044512-22
40016216270100336331354049516-22 54049516-22
45018222297105846543959555016-22 59555016-22
50020229322111154655664560020-22 64560020-22
60024267377123354655675570520-26 75570520-26
70028292430133854655686081024-26 86081024-26
80032318487145254655697592024-30 97592024-30
9003633053715886327061075102024-30 1075102024-30
10004041058716896327061175112028-30 1175112028-30
12004847070219386327061375132032-30 1405134032-33
140056530782267079013381575152036-30 1630156036-36
160064600895281086814761790173040-30 1830176040-36
180072670995302086814761990193044-30 2045197044-39
2000807601095322096516002190213048-30 2265218048-42

Note: The pressure range is 0.05MPa~0.6MPa. The above data is for reference only. Please consult the company's sales department for details.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
