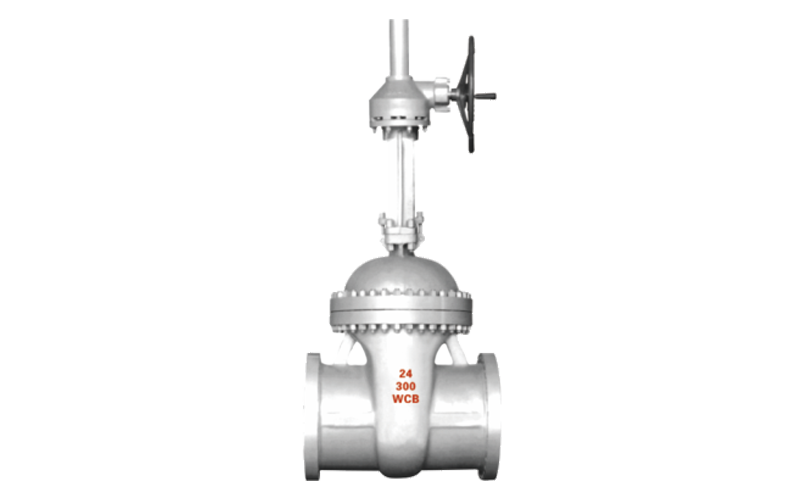

American Standard Gate Valve

American standard gate valve is a cut-off valve that complies with American standards (such as API 600/602). Its opening and closing component is a vertically moving gate plate, which controls the medium flow through the sealing surface between the gate plate and the valve seat. It only supports fully open or fully closed states and cannot be used for flow regulation. These types of valves have the characteristics of large flow area and low fluid resistance. They use elastic gate plates or hard alloy sealing surfaces to enhance wear resistance, and are suitable for pipeline systems in the fields of petroleum, chemical, and power. They can handle water, steam, and corrosive media, with pressure ratings ranging from Class 150 to 2500.

  • Precision Casting and Lightweight Design
  • Flexible operation and driving methods
  • Modular structure and ease of maintenance
  • High pressure and corrosion-resistant materials
  • High sealing reliability
  • Low fluid resistance and straight channel
Precision Casting and Lightweight Design
  • Precision Casting and Lightweight Design
    01
    Adopting precision casting technology to reduce component weight (20%~30% lighter than traditional gate valves), the surface and internal geometric dimensions of the valve body have high precision, ensuring sealing performance and easy installation.
Flexible operation and driving methods
  • Flexible operation and driving methods
    01

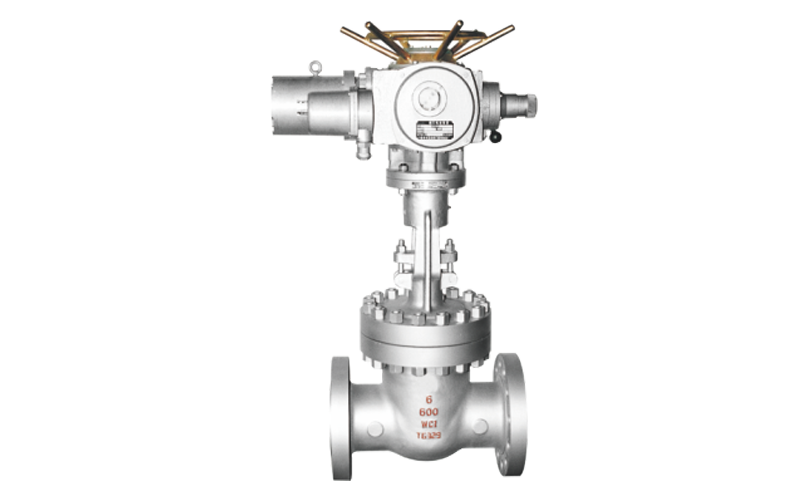

    Support multiple driving forms such as manual (visible/hidden pole), electric, pneumatic, etc., to meet remote control needs; Handwheel or gear transmission device is easy to operate, and some models are equipped with explosion-proof function.
Modular structure and ease of maintenance
  • Modular structure and ease of maintenance
    01
    The valve seat sealing ring is designed with replaceable welding or threading, and the flange in the valve is connected with split bolts for easy disassembly and maintenance; The split design of the packing cover ensures the concentricity of the valve stem and reduces maintenance difficulty.
High pressure and corrosion-resistant materials
  • High pressure and corrosion-resistant materials
    01
    The valve body material is selected from WCB carbon steel, stainless steel (304/316) or alloy steel, and key components are strengthened through quenching and nitriding treatment (such as tensile strength ≥ 550MPa), suitable for high pressure (Class 150-2500), high temperature (up to 650 ℃) and corrosive media.
High sealing reliability
  • High sealing reliability
    01
    The sealing surface is made of hard alloy (such as Co based alloy) or elastic material, combined with a dual sealing structure of corrugated tube and packing, to achieve zero leakage; When fully open/closed, the sealing surface is isolated from the medium to avoid erosion.
Low fluid resistance and straight channel
  • Low fluid resistance and straight channel
    01
    The design adopts a fully open gate that completely separates from the flow channel, with a large flow area and a fluid resistance coefficient similar to that of a straight pipe section, reducing energy loss.
Main Component Materials

Valve, cover, disc

valve stem

sealing surface

Gasket (ring)

filler

WCB

2Cr13

13Cr
STL
Body material
PTFE
nylon

Enhanced flexible graphite
13Cr/flexible graphite
SFB-2
08 Soft Steel
F304
F316
F304L
F316L

Flexible graphite
Enhanced flexible graphite
SFB1260
SFP1260
PTFE

WC1

38CrMoA1
25Cr2Mov

WC6

WC9

C5 C12

CF8

F304

CF3

F316

CF8M

F304L

CF3M

F316L

Performance Specifications & Dimensions
  • Nominal Pressure
    150~2500Lb
  • Shell F
    Px1.5
  • Sealing Pressure
    Px1.1
  • Medium
    Water, steam, oil/nitric acid, acetic acid
  • Temperature (℃)
    Carbon steel ≤ 425/stainless steel ≤ 200/chromium molybdenum steel ≤ 550

Specification
in

Diamete

DN

unit

L

H
(fully open)

D

D1

D2

b

Z-φd

D0

150Lb

2

50

mm

178

409

152

120.5

92

19.1

4-19

200

3

80

mm

203

570

90

152.5

127

23.9

4-19

250

4

100

mm

229

590

229

195.5

157

23.9

8-19

250

6

150

mm

267

630

279

241.5

216

25.4

8-22

300

8

200

mm

292

960

343

298.5

270

28.5

8-22

350

10

250

mm

330

1158

406

362

324

30.2

12-25

400

12

300

mm

356

1378

483

432

381

31.8

12-25

450

14

350

mm

381

1543

533

476.5

412

35

12-29

500

16

400

mm

406

1738

597

539.5

470

36.6

16-29

600

18

450

mm

432

1959

635

578

533

39.7

16-23

600

20

500

mm

457

2214

698

635

584

42.9

20-32

680

24

600

mm

508

2599

813

749.5

692

47.7

20-38

760

28

700

mm

610

3100

684

914

857

74.5

28-35

915

32

800

mm

660

3600

779

1086

1022

90.5

32-41

915

Note: The pressure range is 150Lb~2500Lb. The above data is for reference only. Please consult the company's sales department for details.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
