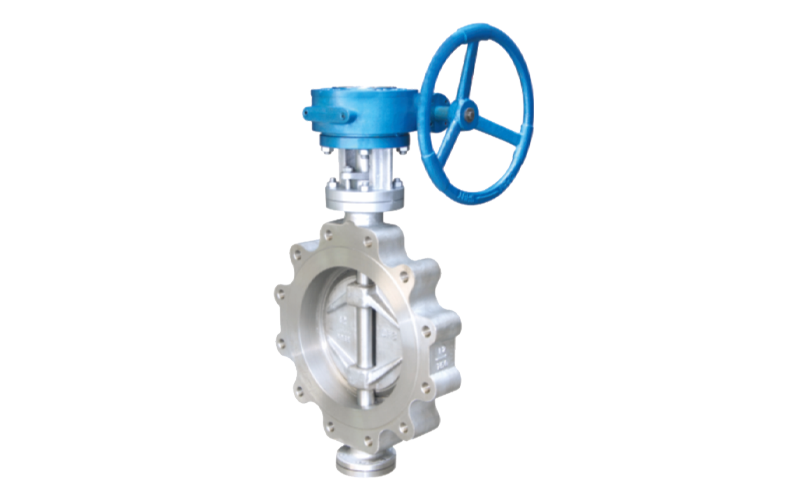

Convex Ear Spy Valve

The convex ear butterfly valve is a type of midline butterfly valve, which is designed with external convex ear structures on both sides of the valve body. It is fixed to the pipeline flange by bolts passing through the convex ears, and has the characteristics of compact structure and easy disassembly and assembly. Its advantages include:

Bidirectional sealing, suitable for media such as water and gas, pressure rating ≤ PN16, temperature range -20 ℃~150 ℃;

No bracket design, the valve shaft is directly embedded in the valve body, reducing leakage points and low maintenance costs;

Suitable for clip on installation, especially for pipeline systems that require frequent maintenance such as fire protection, water supply and drainage.

  • Diversified driving and intelligent control
  • Corrosion resistance and wear resistance
  • Lightweight and compact structure
  • Multiple sealing performance
  • Convenient protruding ear connection method
  • Design of low flow resistance valve plate
Diversified driving and intelligent control
  • Diversified driving and intelligent control
    01
    Supports manual, worm gear, pneumatic or electric drive, with small operating torque and fast opening and closing speed (90 ° rotation to complete the switch);
  • 02
    Some models are equipped with intelligent pneumatic actuators that support remote control and fault diagnosis, and are compatible with automated industrial systems.
Corrosion resistance and wear resistance
  • Corrosion resistance and wear resistance
    01
    The valve body and valve plate can be made of stainless steel (SS316L), heat-resistant alloy and other materials, and the surface can be sprayed with epoxy resin coating to adapt to humid and corrosive environments;
  • 02
    The contact surface of the valve plate is treated with hard alloy or ceramic to improve wear resistance and extend service life.
Lightweight and compact structure
  • Lightweight and compact structure
    01
    The valve body is welded with short structural steel plates or high-strength cast iron, which is lightweight and small in size, suitable for space limited scenarios such as ships and high-altitude pipelines;
  • 02
    No bracket design, the valve shaft is directly embedded in the valve body, reducing leakage points and lowering maintenance difficulty.
Multiple sealing performance
  • Multiple sealing performance
    01
    The sealing ring is made of PTFE or metal material, combined with rubber and metal composite sealing layer, which can withstand high temperature (≤ 300 ℃) and corrosive media;
  • 02
    The triple sealing structure (such as double-layer soft seal+metal seal) ensures reliable sealing under low to medium pressure (PN6-PN16) conditions.
Convenient protruding ear connection method
  • Convenient protruding ear connection method
    01
    The clamp type flange connection is fixed by bolts penetrating through the protruding ears, and installation does not require welding to avoid thermal deformation of the pipeline and ensure system strength;
  • 02
    The protruding ear provides two forms of through-hole (type A) or internally threaded hole (type LT) to adapt to different bolt length requirements and enhance installation flexibility.
Design of low flow resistance valve plate
  • Design of low flow resistance valve plate
    01
    Adopting a disc-shaped valve plate that is parallel to the pipeline when opened, significantly reducing fluid resistance and pressure loss, suitable for long-distance or pressure sensitive systems (such as petrochemical raw material transportation);
  • 02
    Double eccentric or triple eccentric structure optimizes the opening and closing trajectory, reduces friction between the valve plate and valve seat, and extends the sealing life.
Main Component Materials

Part Name

material

valve body

WCB, CF8, CF3, CF3M, CF8M, 22052507, WC6, LCB, C95800, etc

butterfly valve disc

WCB, CF8, CF3, CF3M, CF8M, 22052507, WC6, LCB, C95800, etc

sealing ring

SS304+graphite, SS316+graphite, SS316L+graphite, S31803+graphite PTFE, RPTFE, PPL, EPDM, NBR, etc

valve stem

F6a, F304, F304L, F316, F316L, F51, F53, MonelK400/500, 17-4PH, etc

bushing

SF-1, SF-1B, SS304, SS316, SS304+PTFE, SS316+PTFE, etc

filler

Graphite, PTFE, PPL, etc

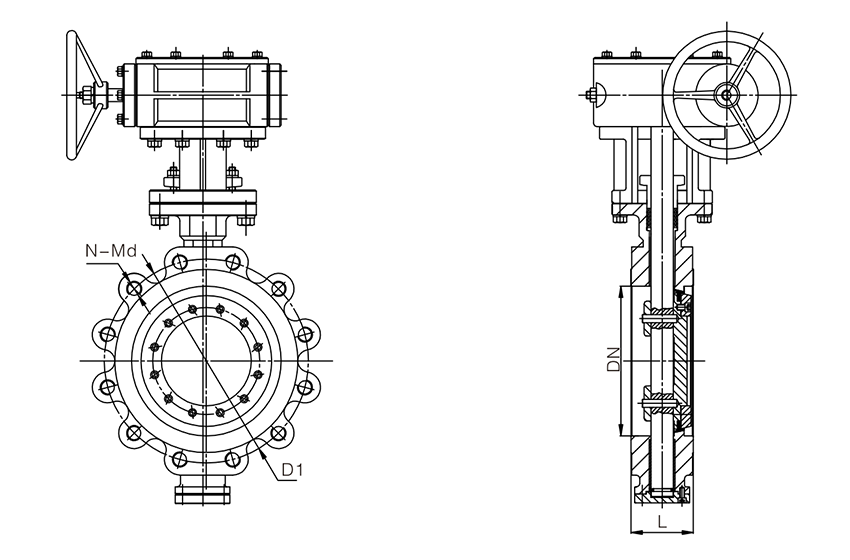

Performance Specifications & Dimensions
  • Nominal pressure PN
    0.6/1.0/1.6/2.5/4.0/6.4
  • Shell F
    P x 1.5
  • Sealing Pressure
    P x 1.1
  • Medium
    Air, water, steam, coal gas, oil products, as well as acids, alkalis, salts with weak corrosive media, etc
  • Temperature (℃)
    Carbon steel: -29 ℃~425 ℃/Stainless steel: -100 ℃~800 ℃

Nominal

diameter

DN (mm)

structural lengthPNO.6MPaPN1.0MPaPN1.6MPaPN2.5MPa
L1L2D1Z-MdD1Z-MdD1Z-MdD1Z-Md
50431104-M121254-M16 1254-M161254-M16
65461304-M121458-M16 1458-M161458-M16
8049641504-M161608-M16 1608-M161608-M16
10056641704-M161808-M16 1808-M161908-M20
12564702008-M162108-M16 2108-M162208-M24
15070762258-M162408-M20 2408-M202508-M24
20071892808-M162958-M20 29512-M2031012-M24
2507611433512-M1635012-M20 35512-M2437012-M27
3008311439512-M2040012-M20 41012-M2443016-M27
3509212744512-M2046016-M20 47016-M2449016-M30
40010214049516-M2051516-M24 52516-M2755016-M33
45011415255016-M2056520-M24 58520-M2760020-M33
50012715260020-M2062020-M24 65020-M3066020-M33
60015417870520-M2472520-M27 77020-M3377020-M36
70016522981024-M2484024-M27 84024-M3387524-M39
80019024192024-M2795024-M30 95024-M3699024-M45
900203241102024-M27105028-M30 105028-M36109028-M45
1000216300112028-M27116028-M33 117028-M39121028-M52
1200254360134032-M30138032-M36 139032-M45142032-M52
1400279390156036-M33159036-M39 159036-M45

1600318440176040-M33182040-M45 182040-M52

1800356490197044-M36202044-M45 202044-M52

2000406540218048-M39223048-M45 223048-M56

Note: The pressure range is 0.6MPa~6.4MPa. The above data is for reference only. Please consult the company's sales department for details.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
