Internal Thread Swing Check Valve

Essence: A valve that is connected by internal threads and uses a rotary valve disc to achieve one-way flow. When the medium flows forward, the valve disc rotates around the axis to open, and when it flows backward, it automatically closes to prevent backflow.


Core features:

Internal thread connection: The valve body has internal threads on both ends, which can be directly screwed into the pipeline interface. The installation is compact and suitable for small-diameter (such as DN15~DN50) pipelines;

Swing design: The valve disc is fixed by a hinge shaft, opened by medium pressure, closed by gravity or reverse flow, with sensitive action and low water hammer pressure;

Low pressure application: Low flow resistance, rubber or metal hard seals are commonly used for sealing surfaces, wear-resistant, suitable for low-pressure water, gas or non corrosive media;

Convenient maintenance: The structure is simple, the valve disc is detachable, and it is easy to clean impurities or replace seals.


Typical applications: Home water supply and drainage, HVAC systems, small industrial equipment, and other scenarios that require backflow prevention and limited space.

  • Reliable sealing and long lifespan
  • Flexible installation and convenient maintenance
  • Corrosion resistance and pressure resistance performance
  • Low flow resistance and efficient circulation
  • Compact and simple yet reliable structure
Reliable sealing and long lifespan
  • Reliable sealing and long lifespan
    01
    The sealing surface of the valve disc adopts rubber or metal hard sealing technology, combined with a dovetail groove embedded sealing ring design, to achieve zero leakage and excellent anti scratch performance.
  • 02
    The casting has undergone aging treatment, resulting in a uniform and defect free structure, with a service life of over 50000 hours.
Flexible installation and convenient maintenance
  • Flexible installation and convenient maintenance
    01
    Support horizontal, vertical, or inclined pipeline installation, suitable for various layout requirements; The valve seat ring and valve disc can be replaced separately without disassembling the entire valve, reducing maintenance costs.
  • 02
    Standardized design ensures interchangeability of components and high maintenance efficiency.
Corrosion resistance and pressure resistance performance
  • Corrosion resistance and pressure resistance performance
    01
    The valve body is made of silica sol precision cast stainless steel material, and the sealing surface can be made of copper alloy or hard alloy welding. It is resistant to corrosive media (such as acid and alkali) and high temperature and high pressure environments (working pressure can reach 1.4MPa, and some scenarios are suitable for 42MPa).
  • 02
    The pin shaft is made of stainless steel material, which is wear-resistant and corrosion-resistant, ensuring long-term stability during use.
Low flow resistance and efficient circulation
  • Low flow resistance and efficient circulation
    01
    The streamlined valve disc design combined with internal threaded flow channels reduces the flow resistance of the medium and is suitable for low-pressure differential conditions, adapting to various media such as water, steam, oil, gas, etc.
  • 02
    The valve disc opens naturally by fluid pressure and automatically closes by gravity or reverse flow, with sensitive action and low energy consumption.
Compact and simple yet reliable structure
  • Compact and simple yet reliable structure
    01
    Adopting an internal thread connection design, the valve body and pipeline are directly screwed together without the need for flanges or complex support structures. The installation space occupation is small, especially suitable for small-diameter pipelines (DN15~DN50).
  • 02
    The core components only include the valve body, valve cover, valve disc, and rotating shaft, with no complex transmission mechanism, low failure rate, and high operational stability.
Main Component Materials

Part Name

H14W-(16~64)C

H14W-(16~64)P

H14W-(16~64)R

valve body

WCB

ZG1Cr18Ni9Ti
304.CF8

ZG1Cr18Ni12Mo2Ti
316.CF8M

valve cover

WCB

1Cr18Ni9Ti
304.CF8

1Cr18Ni12Mo2Ti
316.CF8M

valve disc

CF8

1Cr18Ni9Ti
CF8

1Cr18Ni12Mo2Ti
CF8M

seal

1Cr18Ni9Ti

304,316

filler


Polytetrafluoroethylene

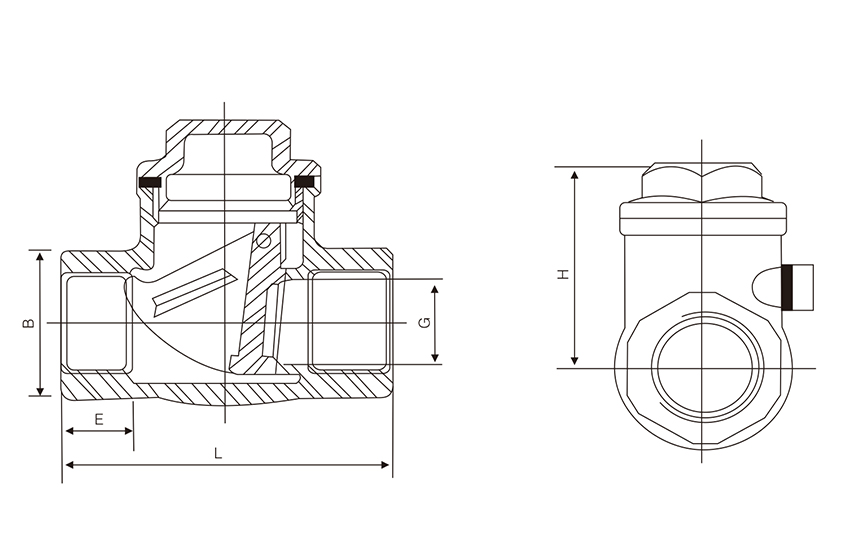

Performance Specifications & Dimensions
  • Nominal Pressure PN
    1.6/2.5/4.0/6.4
  • Shell F
    Px1.5
  • Sealing Pressure
    Px1.1

Nominal Diameter
DN(mm)

G

L

E

B

H

6

1/4"

65

10

24

65

10

3/8"

65

10

24

65

15

1/2"

65

12

26

65

20

3/4"

80

17

32

80

25

1"

91

20

41

90

32

1 1/4"

104

20

51

105

40

1 1/2"

120

20

58

120

50

2"

140

23

69

140

Note: The pressure range is 1.6MPa~6.4MPa. The above data is for reference only. Please consult the company's sales department for details.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
