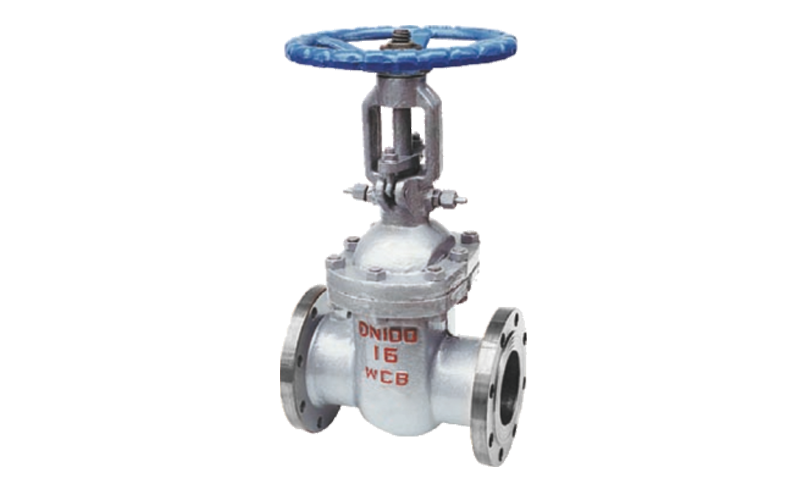

Water Sealed Gate Valve

Water sealed gate valve is a type of valve that uses water pressure to form a sealing barrier, specifically designed for pipeline control of high-pressure, highly corrosive, or solid particle containing media. Its core design and features are as follows:


Sealing principle and structure

Adopting a water seal structure, a sealing layer is formed in the valve cover packing chamber by injecting pressure water (0.6-1MPa) to block medium leakage;

Double gate bi-directional elastic sealing design (such as DS/Z series), flexible opening and closing and reliable sealing, supporting fully open/fully closed states.


Applicable scenarios and performance parameters

Suitable for steam turbine vacuum condensation systems, oil and gas pipelines, and chemical media (such as acid and alkali, steam) in thermal power plants, with a pressure resistance of up to 10.0MPa and a temperature resistance of 425 ℃;

It can handle gases containing particles or non corrosive substances, and the valve body material is mostly cast steel/iron, which is resistant to erosion and has a long service life.


Core advantages

The sealing performance is superior to ordinary gate valves, especially suitable for vacuum or leak prone environments;

Compact structure, easy maintenance, supports flange/welding connection and manual/electric drive.

  • Wide applicability
  • Convenience of operation and maintenance
  • Optimize structure and low flow resistance
  • Corrosion resistance and high pressure capability
  • Water sealing technology
Wide applicability
  • Wide applicability
    01
    Can handle media containing particles, fibers or high viscosity (such as slurry, tar), suitable for complex working conditions with solid content of 30% -60%;
  • 02
    The flow direction of the medium is unrestricted and supports bidirectional flow, suitable for pipeline systems that may change the flow direction.
Convenience of operation and maintenance
  • Convenience of operation and maintenance
    01
    The manual or electric drive device has a small operating torque, easy opening and closing, and fast response, supporting full open/full closed state control;
  • 02
    The modular structure is easy to disassemble and maintain, and the seals can be quickly replaced, reducing maintenance costs and downtime.
Optimize structure and low flow resistance
  • Optimize structure and low flow resistance
    01
    Direct flow channel design, with fluid resistance close to the level of short pipes, reduces pressure drop losses, and improves medium transport efficiency;
  • 02
    Concealed or ultra-thin valve body design reduces space occupation, supports flange/welding connections, and adapts to complex installation conditions.
Corrosion resistance and high pressure capability
  • Corrosion resistance and high pressure capability
    01
    The valve body and sealing surface are mostly made of stainless steel, copper, or special alloys, which can withstand corrosive media such as acid, alkali, salt, and high temperature (up to 425 ℃) environments;
  • 02
    The valve body has a compact structure and high strength, with a pressure bearing capacity of 10.0MPa, suitable for high demand scenarios such as condensing systems and chemical pipelines in thermal power plants.
Water sealing technology
  • Water sealing technology
    01
    Adopting a water pressure self sealing structure (injecting 0.6-1.6MPa pressure water into the packing chamber), a physical isolation barrier is formed to block medium leakage, and the sealing performance is superior to traditional packing sealing;
  • 02
    Double gate bi-directional elastic sealing design, flexible opening and closing, and tight sealing surface when closed, especially suitable for vacuum or high-pressure environments.
Main Component Materials

Product Type

Part Name

Valve body,

valve cover, bracket

valve stem

Gate plate, valve disc,

sealing surface

Seat Seals Face

stem nut

filler

Carbon steel type (C)

WCB
25

1Cr13 or 2Cr13

Cr13 stainless steel

or hard alloy

stainless steel

aluminum

bronze

flexible graphite

Alloy steel (I)

WCB6
Cr5Mo1

38CrMoAlA
20Cr1Mo1VA

cobalt-base alloys

cemented carbide

Performance Specifications & Dimensions
  • Nominal pressure PN
    1.6/2.5/4.0/6.4/10.0/16.0
  • Shell F
    Px1.5
  • Sealing Pressure
    Px1.1
  • Medium
    Water, steam, oil, non corrosive gases
  • Temperature (℃)
    Carbon steel type ≤425℃、alloy steel type ≤550℃

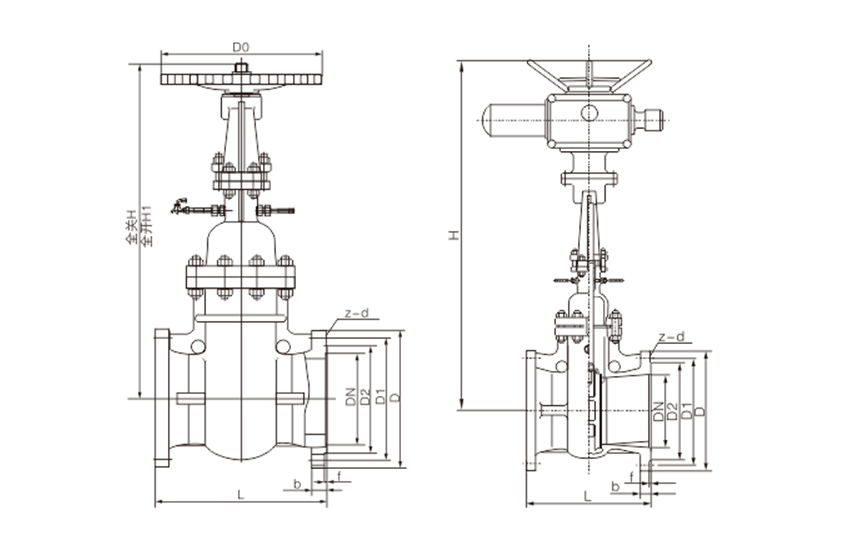

Nominal Diameter
DN(mm)

L

D

D1

D2

b

f

Z-φd

Manual

Electric

H

Do

Weight (Kg)

H

motor unit

Weight (Kg)

PN1.6MPa

50

250

160

125

100

20

3

4-18

330

250

23

620

DZW10

51

65

265

180

145

120

20

3

4-18

435

250

35

714

DZW10

62

80

280

195

160

135

22

3

8-18

491

300

37

765

DZW10

65

100

300

215

180

155

24

3

8-18

571

350

49

840

DZW15

77

125

325

245

210

185

26

3

8-18

582

350

81

852

DZW15

109

150

350

280

240

210

28

3

8-23

603

350

103

875

DZW201

130

200

400

335

295

265

30

3

12-23

737

400

162

1015

DZW20

189

250

450

405

355

320

32

3

12-25

860

400

190

1135

DZW30

216

300

500

460

410

375

34

4

12-25

990

450

252

1371

DZW45

355

350

550

520

470

435

38

4

16-25

1131

500

499

1485

DZW60

605

400

406

580

525

485

40

4

16-30

1520

500

600

1890

DZW60

702

450

432

640

585

545

44

4

20-30

1612

600

695

1989

DZW90

819

500

457

705

650

608

46

4

20-34

1660

600

856

2040

DZW120

980

600

508

840

770

718

54

5

20-41

1739

700

1025

2283

DZW180

1255

700

750

910

840

788

54

5

24-41

1745

750

1749

2347

DZW180

1983

800

800

1020

950

898

54

5

24-41

1899

850

2324

2681

DZW250

2558

Note: The pressure range is 1.6MPa~16.0MPa. The above data is for reference only. Please consult the company's sales department for details.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
