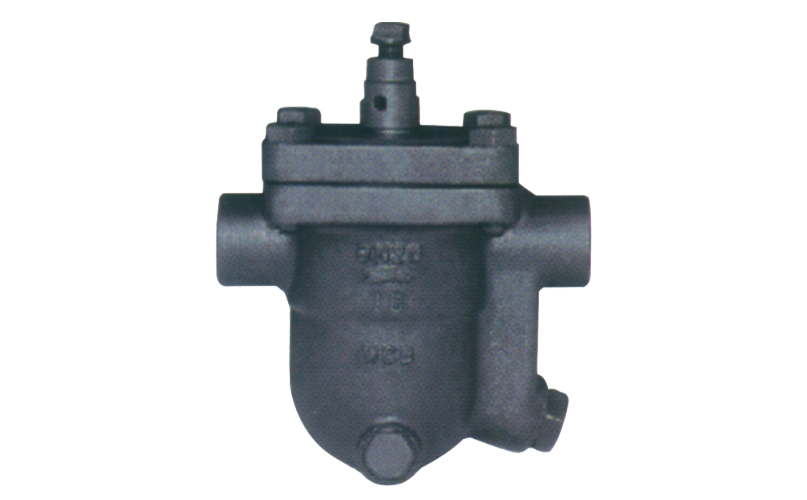

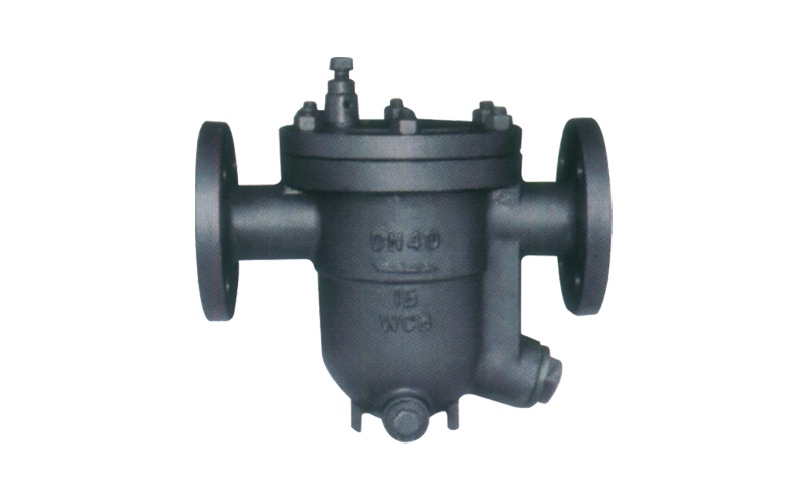

Free Floating Ball Steam Trap

The free floating ball steam trap is a valve that operates automatically based on the principle of buoyancy, and its core structure only contains a stainless steel hollow floating ball as the moving part. When condensed water accumulates in the steam pipeline, the float rises with the water level, and the valve is opened to drain the water; When the water level drops, the float ball falls and closes the valve, effectively blocking steam leakage and preventing pipeline water hammer or corrosion. Its design is simple and reliable, suitable for steam systems that require continuous drainage and temperature stability.

  • Long term maintenance free design
  • Intelligent exhaust function
  • Strong adaptability to working conditions
  • Dynamic sealing performance
  • Continuous and efficient drainage
  • Single activity component structure
Long term maintenance free design
  • Long term maintenance free design
    01
    Corrosion resistant stainless steel material, the floating ball can be sealed at any angle to avoid concentrated wear; The built-in filter can clean impurities online with extremely low maintenance costs.
Intelligent exhaust function
  • Intelligent exhaust function
    01
    Built in Y series automatic air exhaust device, sensitively discharges air and CO ₂, solves air resistance problems, and accelerates system startup.
Strong adaptability to working conditions
  • Strong adaptability to working conditions
    01
    Not affected by pressure/temperature fluctuations, with a minimum working pressure of 0.01MPa and a back pressure rate of up to 85% -95%, suitable for scenarios with frequent load changes.
Dynamic sealing performance
  • Dynamic sealing performance
    01
    The high-precision floating ball is in full contact and sealed with the valve seat, and the valve seat is submerged in water for a long time to form a water seal, with a steam leakage rate of less than 3%, basically eliminating steam leakage.
Continuous and efficient drainage
  • Continuous and efficient drainage
    01
    The floating ball rises and falls in real-time with the condensate liquid level, achieving continuous drainage at saturation temperature (0 ℃ subcooling), avoiding equipment water accumulation, and ensuring maximum thermal efficiency.
Single activity component structure
  • Single activity component structure
    01
    Only contains a finely ground stainless steel hollow float ball, which is both a float and an opening and closing component, without complex mechanical linkage devices, with low failure rate and long service life.
Main Component Materials

Main components

material

valve body

carbon steel

valve cover

carbon steel

valve seat

stainless steel

filter

stainless steel

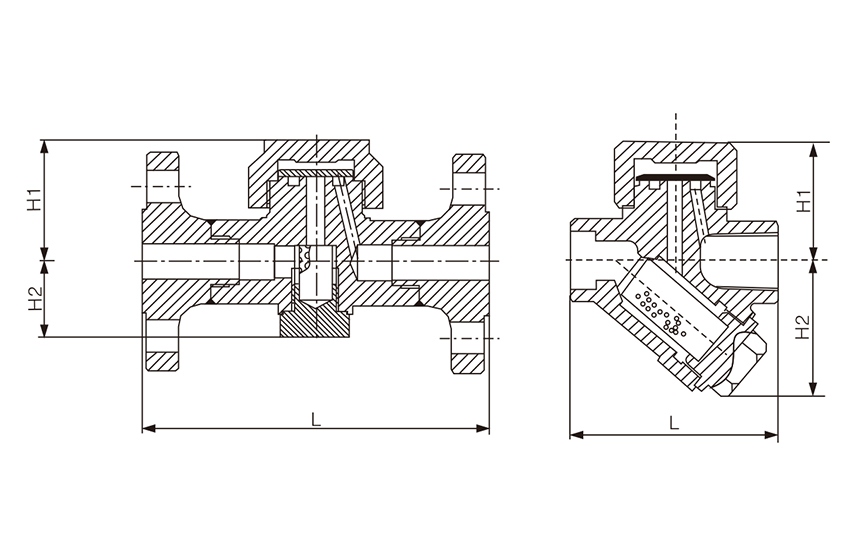

Performance Specifications & Dimensions
  • Nominal pressure PN
    1.6/2.5/4.0/6.4
  • Shell F
    P x 1.5
  • Sealing Pressure
    P x 1.1
  • Medium
    steam
  • Temperature (℃)
    ≤200℃

Product

Model

Nomina

Diameter

DN

size

L

H

D

D1

D2

b

f

Z-φd

CS41H-16/25/40C-B

15

195

195

95

65

45

14

2

4-φ14

20

195

200

105

75

55

14

2

4-φ14

25

215

225

115

85

65

14

2

4-φ14

CS41H-16/25/40C-D

25

270

245

115

85

65

14

2

4-φ14

32

270

250

135

100

78

16

2

4-φ18

40

280

290

145

110

85

16

3

4-φ18

50

290

300

160

125

100

16

3

4-φ18

CS41H-16/25C-F

50

380

380

160

125

100

16

3

4-φ18

65

380

380

180

145

120

18

3

8-φ18

80

400

420

195

160

135

20

3

8-φ18

100

400

440

215

180

155

20

3

8-φ18

125

430

510

245

210

185

22

3

8-φ18

150

450

510

280

240

210

24

3

8-φ23

Note: The above data is for reference only. For details, please consult the company's sales department.

Valve Application
  • Oil & Gas Transportation

    Oil and gas transportation involves multiple modes such as pipelines and ships, and is the core link of the energy supply chain.

  • Chemical Raw Material Control

    The control of chemical raw materials covers the entire process of mining, storage, and production, ensuring safety and process stability.

  • High Temperature SteamPipeline in Power System

    High temperature steam pipelines are the core of energy transmission in power systems, supporting the efficient operation of thermal and nuclear power plants.

  • Other Industries

    Valves control fluids in multiple industries such as new energy and electronics, ensuring safe and efficient production.
